On December 25, a highly anticipated imaging flagship series smartphone was officially released as scheduled. Centered on imaging performance, the new product delivers a comprehensive upgrade, featuring a professional-grade, high-resolution continuous optical zoom lens paired with a new-generation flagship processor, bringing a completely refreshed user experience.

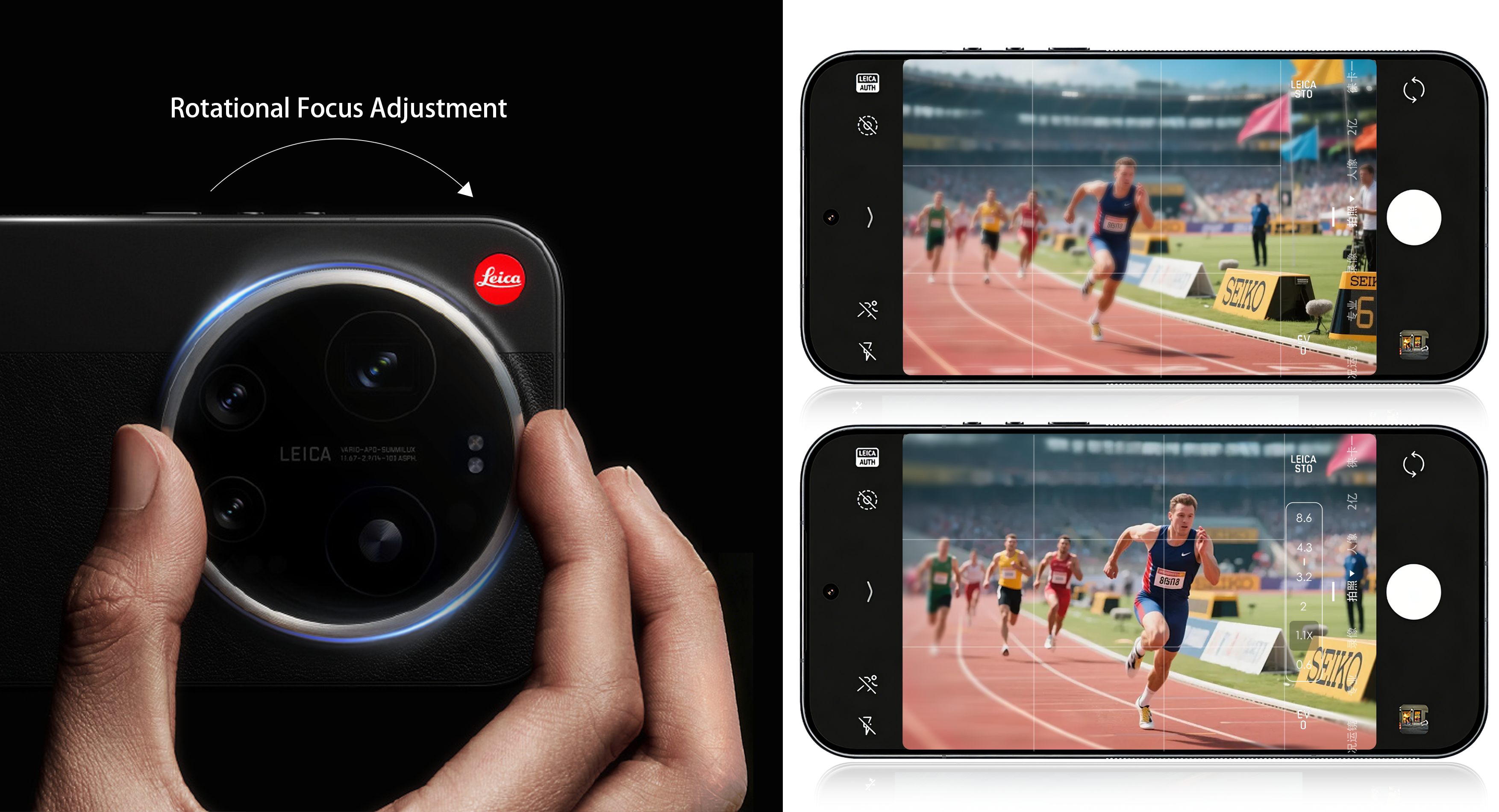

Its milestone significance lies in its 'dual-core' technological approach to replicating the essence of professional cameras.

Design: It pioneers a fusion of classic professional imaging design language and iconic branding craftsmanship, redefining the premium aesthetic of smartphones.

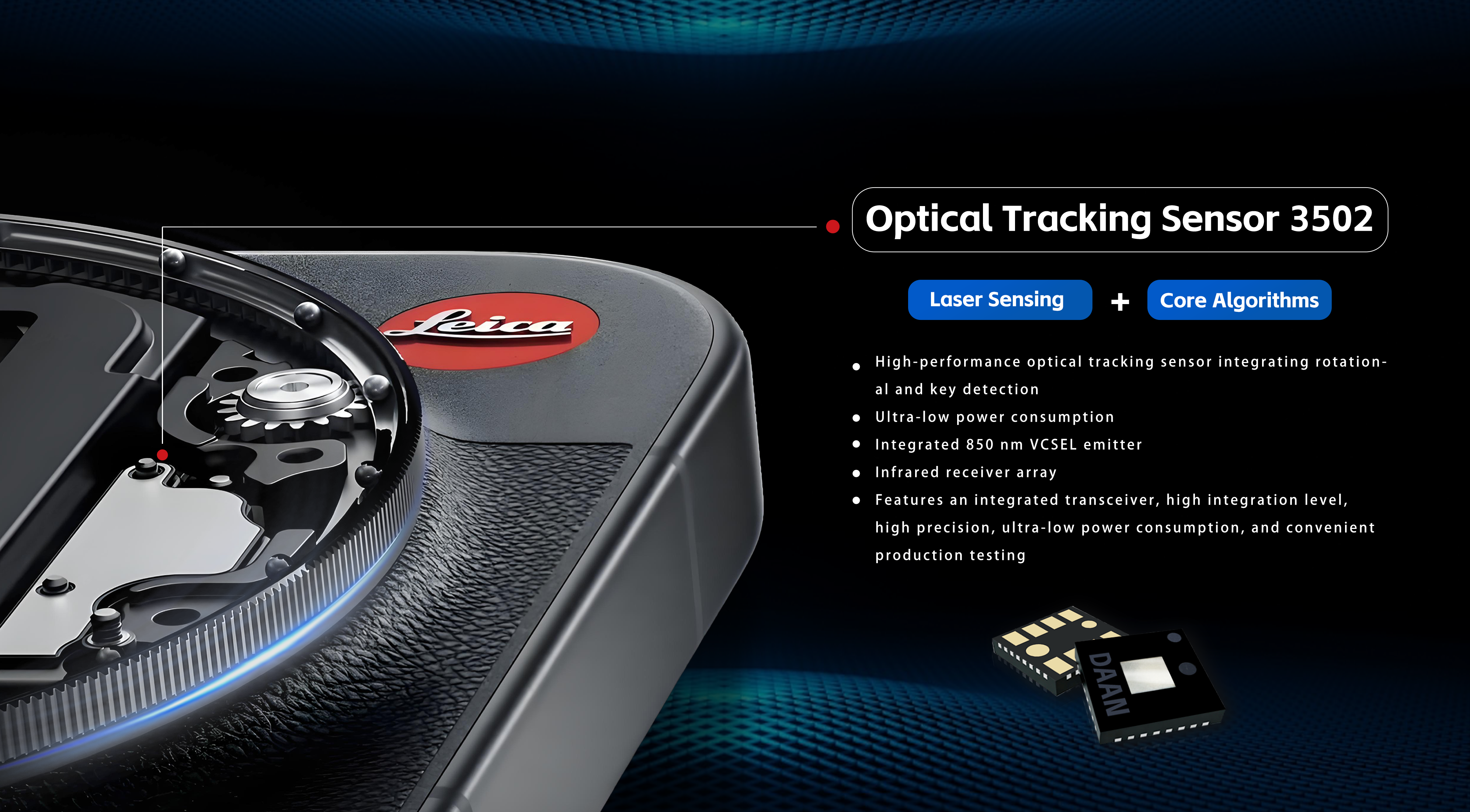

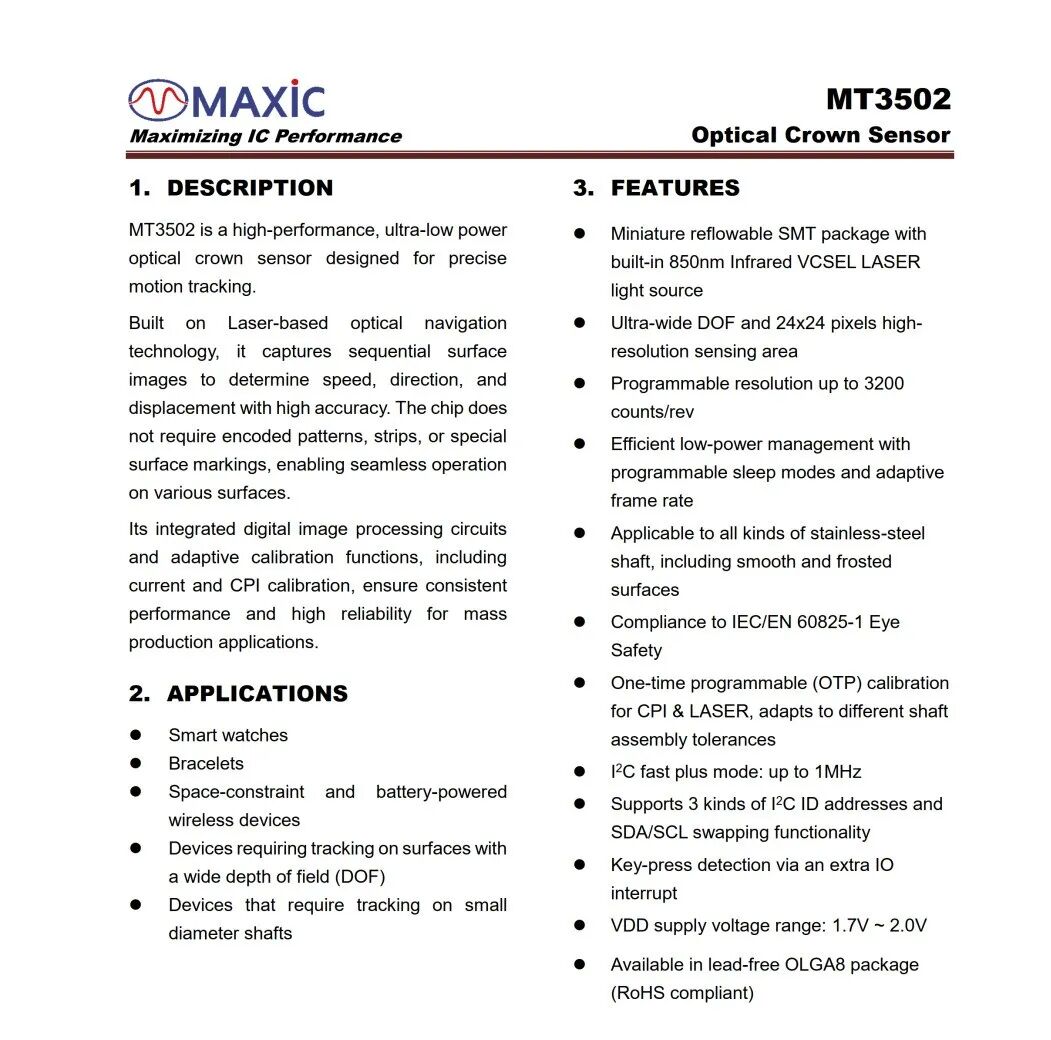

Maxic MT3502 is the industry’s first high-performance, ultra-low-power optical tracking sensor that integrates both rotational and key detection. It incorporates an 850 nm VCSEL emitter, an infrared receiver array, a high-precision ADC, and a high-speed digital image processing module. Featuring an integrated transceiver, high integration, high precision, ultra-low power consumption, convenient production testing, and rich functionality, it is primarily used for rotary and press detection in devices such as smartphones, smartwatches, and smart glasses.

• Industry’s first chip integrating both rotational detection and key detection


• Compact OLGA package: 3.5 mm × 3.2 mm × 0.65 mm, with integrated 850 nm VCSEL

• 24x24 extra-large pixel sensing area, wide depth of field, detection height range from 0.5 mm to 30 mm

• Resolution up to 5000 CPI (STS stainless-steel surface); supports crown rotation speeds up to 900 RPM

• Ultra-low-power design: typical current of 550 μA in active mode, 5 μA in sleep mode, and 1.5 μA in standby mode

• Built-in OTP, supporting CPI calibration, with calibration accuracy of 0.625%

• Supports 1 MHz I2C communication with SDA/SCL swap capability, allowing dual devices on the same bus

• Supports 2-wire SPI interface

• Supports GPIO key interrupt detection

• Integrated VCSEL fault detection function

Maxic will continue to strive for excellence, constantly optimizing, upgrading, and innovating our products to provide customers with even more satisfactory and high-value solutions.
